SAPPHIRE COMPACT (DLP)

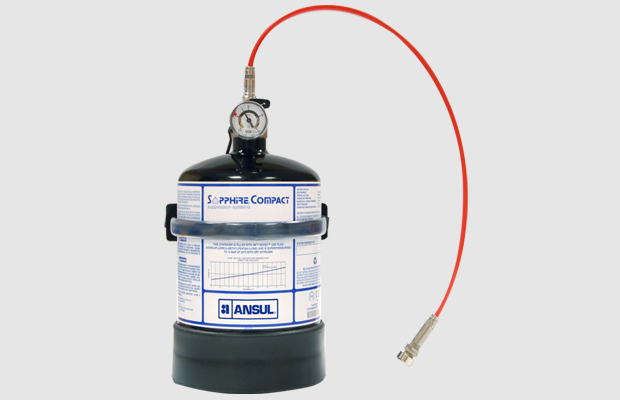

The ANSUL® SAPPHIRE COMPACT Direct Low Pressure (DLP) Fixed Fire Suppression System has been specifically designed to protect small electrical enclosures.  A self-contained system, it requires no power for either detection or operation and protects enclosures that use either natural ventilation or forced airflow.  One system can protect up to four enclosures, and each enclosure can contain multiple compartments.

ANSUL SAPPHIRE COMPACT Direct low pressure (DLP) is designed specifically for small enclosures housing data and other electrical equipment.
ANSUL SAPPHIRE COMPACT (DLP) Fixed Fire Suppression System is specifically designed for small enclosures housing data and other electrical equipment.

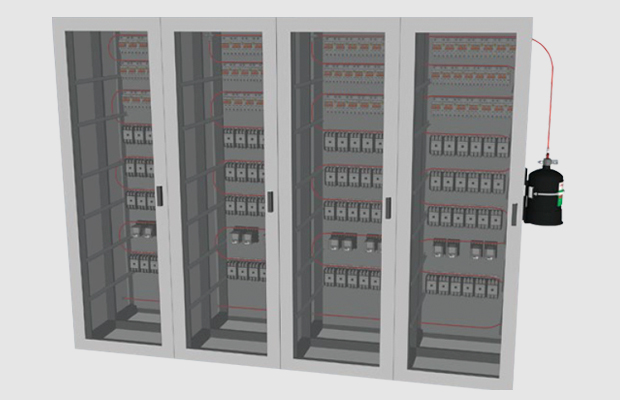

The system is designed in accordance with Loss Prevention Standard, LPS 1666: Requirements and test procedures for the LPCB approval of direct low pressure (DLP) application fixed fire suppression systems.  Pressurised detection tubing is routed throughout the high-risk areas of the enclosure and will rupture due to flame impingement or high ambient temperature.  The fire suppressing clean agent is then discharged from the connected container through the tubing rupture point onto the fire.

SAPPHIRE COMPACT Direct Low Pressure – System Operation

SAPPHIRE COMPACT fire suppression systems require no power for detection or operation. Detection tubing is routed through the high risk areas of the enclosure, providing fast and effective detection. Upon flame impingement or high ambient temperature, the pressurised detection tube will rupture. The extinguishing agent is then discharged from the connected container through the rupture point on to the fire.

SAPPHIRE COMPACT systems utilise 3M™ Novec™ 1230 Fire Protection Fluid, an electrically non-conductive clean agent. If discharged, the agent will not damage electronic equipment or the data stored on it and has zero ozone depleting potential and negligible global warming potential.

Contact Torvac Solutions fire gas suppression specialist for further information about protecting small enclosures and switch rooms.

Download a Product Brochure
